Pillow Block Bearing with Bushing

Pillow block bearings with bushings manufactured in high volumes in the USA

Triangle's pillow block bearings with bushings are self-aligned lubricated bearings offering a longer life-span and quieter operation with a much smoother rotation with the shaft. Applications include agriculture, lawn and garden, HVAC and air handling, automotive, recreational vehicles, food processing, vending, construction, manufacturing, pulp & paper, solar, mining, water treatment, aerospace, quarrying and mining.

View as Table List

40 Items

per page
Set Descending Direction
  1. Lubrication Apparatus: Grease Fitting (Zerk) Remove This Item Lubrication Apparatus: Grease Fitting (Zerk)
Clear All Filters
Part
Number
Add to
Compare
Shaft Size (Bore ID) Mount Hole Center to Center Overall Length Bearing Spherical Diameter Bearing Width With Cushion Quantity Request
Quote
BBH8G 1/2" 2.875 3.938 1.69 1.25 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1/2"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH8G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH12G 3/4" 2.875 3.938 1.69 1.25 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH12G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH10G 5/8" 2.875 3.938 1.69 1.25 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 5/8"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH10G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH14G 7/8" 2.875 3.938 1.69 1.25 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH14G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH16G 1" 2.875 3.938 1.69 1.25 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH16G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs

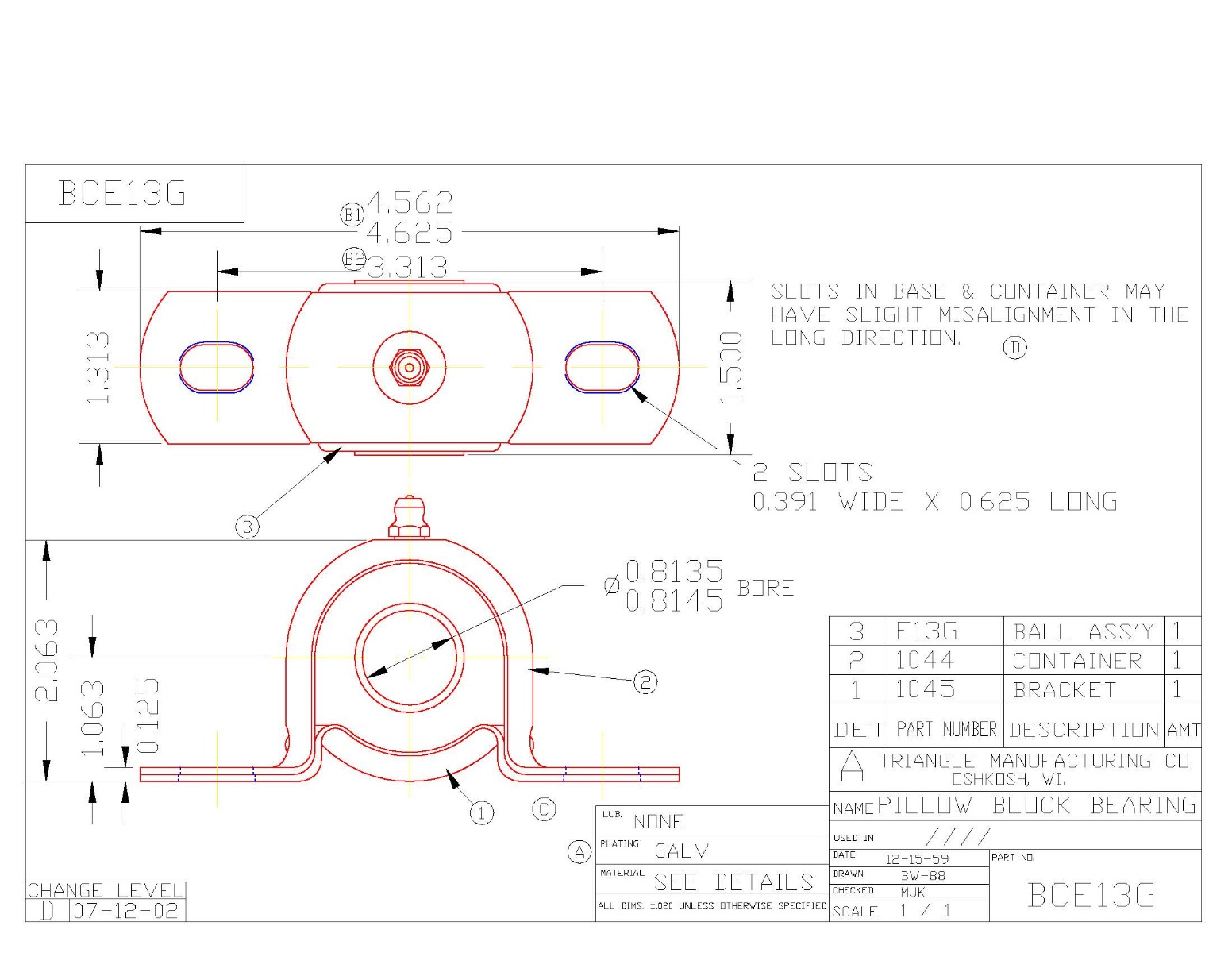

BCE13G 13/16" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 13/16"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE13G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE15G 15/16" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 15/16"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE15G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE12G 3/4" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE12G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE14G 7/8" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE14G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE20G 1 1/4" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/4"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE20G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE18G 1 1/8" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/8"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE18G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE19G 1 3/16" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 3/16"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE19G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE16G 1" 3.313 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE16G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BEH8G 1/2" 2.969 4.032 1.69 1.188 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1/2"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH8G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH12G 3/4" 2.969 4.032 1.69 1.188 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH12G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH10G 5/8" 2.969 4.032 1.69 1.188 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 5/8"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH10G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH14G 7/8" 2.969 4.032 1.69 1.188 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH14G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH16G 1" 2.969 4.032 1.69 1.188 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH16G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BFE13G 13/16" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 13/16"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE13G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BFE15G 15/16" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 15/16"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE15G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BFE12G 3/4" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE12G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BFE14G 7/8" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE14G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BFE20G 1 1/4" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1 1/4"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE20G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BFE18G 1 1/8" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1 1/8"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE18G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BFE19G 1 3/16" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1 3/16"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE19G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BFE16G 1" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE16G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BF
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2"
Strength
Heavy Duty
View All Product Specs
BJT12G 3/4" 3.328 4.625 2 1.5 No Qty:

Cast - Machined Iron Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJT12G
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Cast - Machined Iron
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJT16G 1" 3.328 4.625 2 1.5 No Qty:

Cast - Machined Iron Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJT16G
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Cast - Machined Iron
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJE13G 13/16" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 13/16"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJE13G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJE15G 15/16" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 15/16"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJE15G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJE12G 3/4" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJE12G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJE14G 7/8" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJE14G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJE20G 1 1/4" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1 1/4"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJE20G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJE18G 1 1/8" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1 1/8"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJE18G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BJE16G 1" 3.328 4.625 2 1.5 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BJE16G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BJ
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.328"
Mount Socket Diameter
2.002"
Strength
Heavy Duty
View All Product Specs
BKF24G 1 1/2" 3.875 5.5 2.5 1.75 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1 1/2"

with Grease Fitting (Zerk), Center to Center 3.875", Overall Length 5.5", Bearing Width 1.75", Spherical Diameter 2.5" - Extra Heavy Duty
Part #: BKF24G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BK
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2.5"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.75"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
5.5"
Mount Width
1.438"
Mount Hole Center to Center
3.875"
Mount Socket Diameter
2.5"
Strength
Extra Heavy Duty
View All Product Specs
BKF20G 1 1/4" 3.875 5.5 2.5 1.75 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1 1/4"

with Grease Fitting (Zerk), Center to Center 3.875", Overall Length 5.5", Bearing Width 1.75", Spherical Diameter 2.5" - Extra Heavy Duty
Part #: BKF20G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BK
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2.5"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.75"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
5.5"
Mount Width
1.438"
Mount Hole Center to Center
3.875"
Mount Socket Diameter
2.5"
Strength
Extra Heavy Duty
View All Product Specs
BKF18G 1 1/8" 3.875 5.5 2.5 1.75 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1 1/8"

with Grease Fitting (Zerk), Center to Center 3.875", Overall Length 5.5", Bearing Width 1.75", Spherical Diameter 2.5" - Extra Heavy Duty
Part #: BKF18G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BK
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2.5"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.75"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
5.5"
Mount Width
1.438"
Mount Hole Center to Center
3.875"
Mount Socket Diameter
2.5"
Strength
Extra Heavy Duty
View All Product Specs
BKF19G 1 3/16" 3.875 5.5 2.5 1.75 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1 3/16"

with Grease Fitting (Zerk), Center to Center 3.875", Overall Length 5.5", Bearing Width 1.75", Spherical Diameter 2.5" - Extra Heavy Duty
Part #: BKF19G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BK
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2.5"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.75"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
5.5"
Mount Width
1.438"
Mount Hole Center to Center
3.875"
Mount Socket Diameter
2.5"
Strength
Extra Heavy Duty
View All Product Specs
BKF22G 1 3/8" 3.875 5.5 2.5 1.75 No Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 11 Gauge - 1 3/8"

with Grease Fitting (Zerk), Center to Center 3.875", Overall Length 5.5", Bearing Width 1.75", Spherical Diameter 2.5" - Extra Heavy Duty
Part #: BKF22G IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
BK
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2.5"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.75"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
11 Gauge
Overall Length
5.5"
Mount Width
1.438"
Mount Hole Center to Center
3.875"
Mount Socket Diameter
2.5"
Strength
Extra Heavy Duty
View All Product Specs
Select and compare up to 4 products.
Select and compare up to 4 products.
Copyright © 2026 Triangle Manufacturing Company. All rights reserved.
