Pillow Block Bearing with Bushing

Pillow block bearings with bushings manufactured in high volumes in the USA

Triangle's pillow block bearings with bushings are self-aligned lubricated bearings offering a longer life-span and quieter operation with a much smoother rotation with the shaft. Applications include agriculture, lawn and garden, HVAC and air handling, automotive, recreational vehicles, food processing, vending, construction, manufacturing, pulp & paper, solar, mining, water treatment, aerospace, quarrying and mining.

Pillow Block Bearings with Bushings
Send us a message

View as Table List

Items 1-50 of 121

Page
per page
Set Descending Direction
Part
Number 		Add to
Compare 		Shaft Size (Bore ID) Mount Hole Center to Center Overall Length Bearing Spherical Diameter Bearing Width With Cushion Quantity Request
Quote
BBH8P 1/2" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH8P Pillow Block Bearing with Bushing BBH8P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1/2"

with SAE30 Non-Detergent Oil, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH8P
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH8G 1/2" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH8G Pillow Block Bearing with Bushing BBH8G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1/2"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH8G
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH8A 1/2" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH8A Pillow Block Bearing with Bushing BBH8A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1/2"

with Oil Cup, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH8A
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH12P 3/4" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH12P Pillow Block Bearing with Bushing BBH12P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with SAE30 Non-Detergent Oil, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH12P
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH12G 3/4" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH12G Pillow Block Bearing with Bushing BBH12G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH12G
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH12A 3/4" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH12A Pillow Block Bearing with Bushing BBH12A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with Oil Cup, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH12A
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH10P 5/8" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH10P Pillow Block Bearing with Bushing BBH10P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 5/8"

with SAE30 Non-Detergent Oil, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH10P
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH10G 5/8" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH10G Pillow Block Bearing with Bushing BBH10G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 5/8"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH10G
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH10A 5/8" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH10A Pillow Block Bearing with Bushing BBH10A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 5/8"

with Oil Cup, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH10A
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH14P 7/8" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH14P Pillow Block Bearing with Bushing BBH14P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with SAE30 Non-Detergent Oil, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH14P
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH14G 7/8" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH14G Pillow Block Bearing with Bushing BBH14G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH14G
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH14A 7/8" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH14A Pillow Block Bearing with Bushing BBH14A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with Oil Cup, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH14A
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH16P 1" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH16P Pillow Block Bearing with Bushing BBH16P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with SAE30 Non-Detergent Oil, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH16P
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH16G 1" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH16G Pillow Block Bearing with Bushing BBH16G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH16G
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BBH16A 1" 2.875 3.938 1.69 1.25 No Qty:
Pillow Block Bearing with Bushing BBH16A Pillow Block Bearing with Bushing BBH16A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with Oil Cup, Center to Center 2.875", Overall Length 3.938", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty
Part #: BBH16A
PRODUCT SPECIFICATIONS
Triangle Series
BB
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
3.938"
Mount Width
1.13"
Mount Hole Center to Center
2.875"
Mount Socket Diameter
1.67"
Strength
Medium Duty
View All Product Specs
BCE13P 13/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE13P Pillow Block Bearing with Bushing BCE13P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 13/16"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE13P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE13G 13/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE13G Pillow Block Bearing with Bushing BCE13G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 13/16"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE13G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE13A 13/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE13A Pillow Block Bearing with Bushing BCE13A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 13/16"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE13A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE15P 15/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE15P Pillow Block Bearing with Bushing BCE15P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 15/16"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE15P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE15G 15/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE15G Pillow Block Bearing with Bushing BCE15G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 15/16"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE15G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE15A 15/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE15A Pillow Block Bearing with Bushing BCE15A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 15/16"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE15A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE12P 3/4" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE12P Pillow Block Bearing with Bushing BCE12P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE12P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE12G 3/4" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE12G Pillow Block Bearing with Bushing BCE12G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE12G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE12A 3/4" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE12A Pillow Block Bearing with Bushing BCE12A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 3/4"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE12A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE14P 7/8" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE14P Pillow Block Bearing with Bushing BCE14P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE14P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE14G 7/8" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE14G Pillow Block Bearing with Bushing BCE14G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE14G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE14A 7/8" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE14A Pillow Block Bearing with Bushing BCE14A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 7/8"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE14A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE20P 1 1/4" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE20P Pillow Block Bearing with Bushing BCE20P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/4"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE20P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs

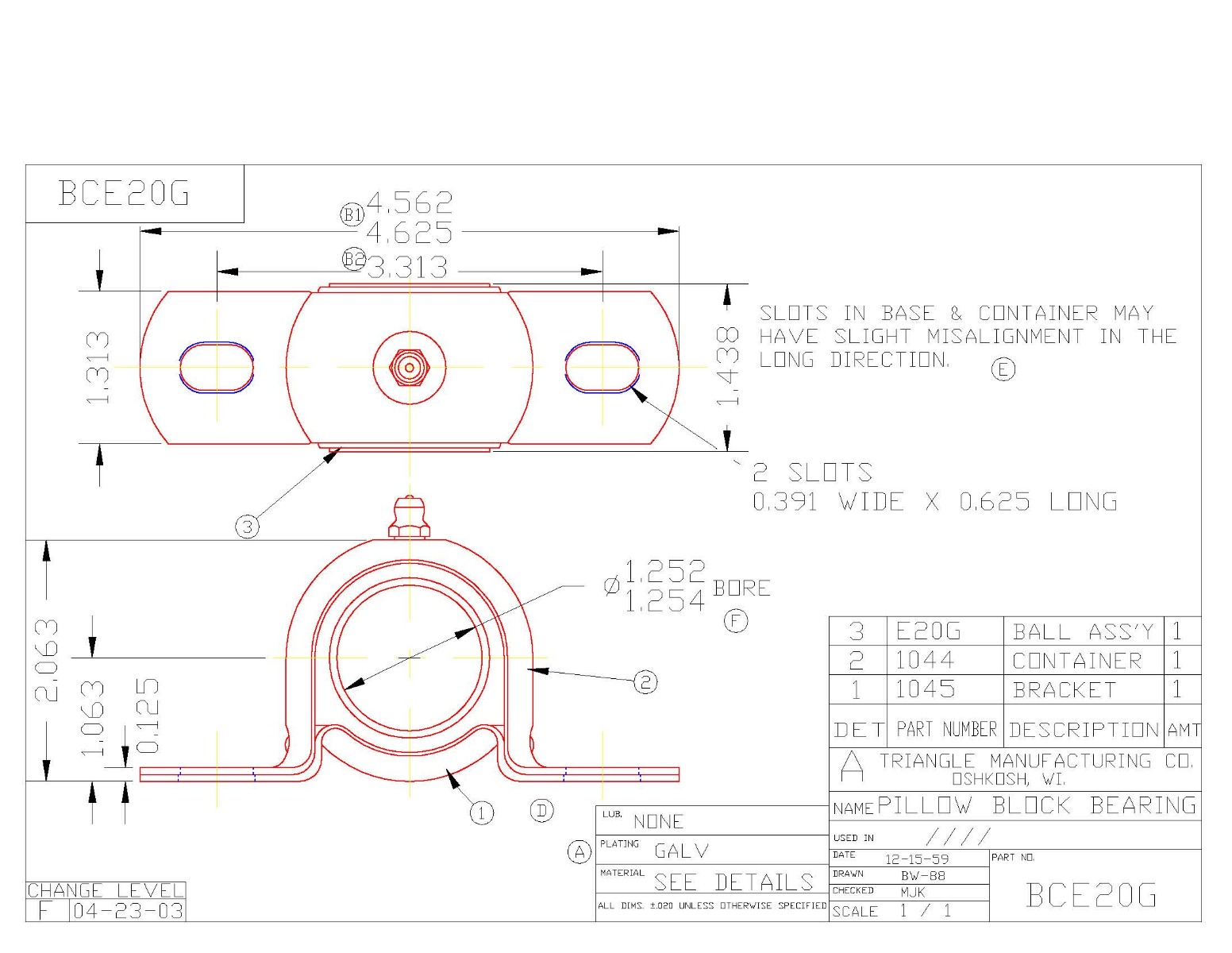

BCE20G 1 1/4" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE20G Pillow Block Bearing with Bushing BCE20G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/4"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE20G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE20A 1 1/4" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE20A Pillow Block Bearing with Bushing BCE20A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/4"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE20A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE18P 1 1/8" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE18P Pillow Block Bearing with Bushing BCE18P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/8"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE18P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE18G 1 1/8" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE18G Pillow Block Bearing with Bushing BCE18G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/8"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE18G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE18A 1 1/8" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE18A Pillow Block Bearing with Bushing BCE18A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 1/8"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE18A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE19P 1 3/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE19P Pillow Block Bearing with Bushing BCE19P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 3/16"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE19P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE19G 1 3/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE19G Pillow Block Bearing with Bushing BCE19G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 3/16"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE19G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE19A 1 3/16" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE19A Pillow Block Bearing with Bushing BCE19A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1 3/16"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE19A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE16P 1" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE16P Pillow Block Bearing with Bushing BCE16P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with SAE30 Non-Detergent Oil, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE16P
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE16G 1" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE16G Pillow Block Bearing with Bushing BCE16G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE16G
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BCE16A 1" 3.313 4.625 2 1.5 No Qty:
Pillow Block Bearing with Bushing BCE16A Pillow Block Bearing with Bushing BCE16A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 16 Gauge - 1"

with Oil Cup, Center to Center 3.313", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Medium Duty
Part #: BCE16A
PRODUCT SPECIFICATIONS
Triangle Series
BC
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.625"
Mount Width
1.313"
Mount Hole Center to Center
3.313"
Mount Socket Diameter
2.002"
Strength
Medium Duty
View All Product Specs
BEH8P 1/2" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH8P Pillow Block Bearing with Bushing BEH8P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1/2"

with SAE30 Non-Detergent Oil, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH8P
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH8G 1/2" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH8G Pillow Block Bearing with Bushing BEH8G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1/2"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH8G
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH8A 1/2" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH8A Pillow Block Bearing with Bushing BEH8A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 1/2"

with Oil Cup, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH8A
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH12P 3/4" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH12P Pillow Block Bearing with Bushing BEH12P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 3/4"

with SAE30 Non-Detergent Oil, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH12P
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH12G 3/4" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH12G Pillow Block Bearing with Bushing BEH12G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH12G
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH12A 3/4" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH12A Pillow Block Bearing with Bushing BEH12A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 3/4"

with Oil Cup, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH12A
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BE10808 3/4" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BE10808 Pillow Block Bearing with Bushing BE10808

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 3/4"

with SAE30 Non-Detergent Oil, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69", Tight Fit - Medium Duty
Part #: BE10808
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Medium Duty
View All Product Specs
BEH10P 5/8" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH10P Pillow Block Bearing with Bushing BEH10P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 5/8"

with SAE30 Non-Detergent Oil, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH10P
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH10G 5/8" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH10G Pillow Block Bearing with Bushing BEH10G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 5/8"

with Grease Fitting (Zerk), Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH10G
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH10A 5/8" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH10A Pillow Block Bearing with Bushing BEH10A

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 5/8"

with Oil Cup, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH10A
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
BEH14P 7/8" 2.969 4.032 1.69 1.188 No Qty:
Pillow Block Bearing with Bushing BEH14P Pillow Block Bearing with Bushing BEH14P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 7/8"

with SAE30 Non-Detergent Oil, Center to Center 2.969", Overall Length 4.032", Bearing Width 1.188", Spherical Diameter 1.69" - Heavy Duty
Part #: BEH14P
PRODUCT SPECIFICATIONS
Triangle Series
BE
Type
Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.188"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
4.032"
Mount Width
1.125"
Mount Hole Center to Center
2.969"
Mount Socket Diameter
1.688"
Strength
Heavy Duty
View All Product Specs
FILTER RESULTS
FILTER

Bearing Spherical
Diameter

Drawing Showing a Shaft Size Measurement
Apply

Bearing Width

Drawing Showing a Bearing Measurement
Apply

Lubrication
Apparatus

  How to Choose Lubrication Apparatus

LUBRICATION APPARATUS

TYPE A – OIL CUP

Oil Lubricated | Ex: H12A



TYPE G – GREASE FITTING (ZERK)

For grease lubrication | Ex: H12G

*Triangle does not lubricate the bearing with grease in the manufacturing process. Customer must apply.



TYPE F (LUBE FITTING)

Closed smooth ball, no openings or protrusions Ex: H12F



TYPE K – ANGLED OIL CUP

Oil Lubricated | Ex: H12K



TYPE J – ANGLED GREASE FITTING (ZERK)

For grease lubrication | Ex: H12J

*Triangle does not lubricate the bearing with grease in the manufacturing process. Customer must apply.



Mount Hole
Center to Center

  How to Measure Mount Hole Center to Center

MOUNT HOLE CENTER TO CENTER

 Mount hole center to center is the distance between each mounting hole. Please see images for reference of each part.

FLANGE BEARING





PILLOW BLOCK BEARING



HANGER BEARING





PEDESTAL BEARING



OFFSET FLANGE BEARING





LINKAGE ASSEMBLY



LAZY SUSAN BEARING


Apply

Overall Length

  How to Measure Overall Length

OVERALL LENGTH

The Overall Length measurement is the distance from each end of a product. Please see images below for more clarification on other categories (i.e. Linkages & Rod Ends, Lazy Susan Bearings and Motor Mounts)

LINKAGES & ROD ENDS



MOTOR MOUNT BANDS



LAZY SUSAN BEARING
Apply

Mount Socket
Diameter

Apply

Bearing Ball
Material

  How to Select a Material

SINTERED BRONZE

Mount Width

Apply

Type of
Lubricant

  How to Choose Type of Lubricant

TYPE OF LUBRICANT



GREASE LUBRICATION

Bearings with grease fittings are NOT factory lubricated. Grease should be applied with a pressure gun at the time of installation, filling the ball unit and bearing until grease appears at the shaft surface.

Grease for a lubrication is recommended for applications with lower speeds and loads. Because the grease restricts contaminants from entering it is preferred for dusty and dirty applications.



PLASTIC E LUBE

Gulf Plastic Petroleum “E” feeds slowly through the bushing by capillary action, replacing dissipated lubricant. Factory-lubricated ball units may be closed balls or equipped with removable plugs for relubrication.



SAE 30 NON-DETERGENT OIL

FOR BEARING BALL WITH BUSHING

Triangle Steel Bearing Ball Units have large oil retaining felts for substantial lubricant capacity. Once the bearing is in use and the ball and felt saturated with oil, long bearing life may be expected under proper operating conditions. The standard oil supplied is a good grade of industrial mineral oil, NON-DETERGENT, SAE 30 viscosity. Bearing use at elevated or very low temperatures may require oil of different viscosity. Triangle recommends relubrication of bearings at the time of installation even though a full supply of oil is provided at the factory. Conditions encountered during shipping and storage may cause some oil loss.



FOR SINTERED BEARINGS

Triangle’s sintered bearings are oil impregnated with SAE30-Non-Detergent oil. These bearings are porous which allows for the bearing to be constantly re-lubricated while being used.



BEARINGS WITH SPECIAL LUBRICANT

Triangle is not limited to the lubrication methods described above. If you require a special lubricant, please contact us. We will be happy to discuss that requirement with you.
PRODUCTS

 (

)

Select and compare up to 4 products.
Select and compare up to 4 products.
Copyright © 2026 Triangle Manufacturing Company. All rights reserved.
