Rubber Mounted Pillow Block Bearing with Bushing

Industrial rubber mounted pillow block bearings with bushings available in high quantities

Triangle's rubber mounted pillow block bearings with bushings are self-aligned, lubricated bearings offering a longer life-span and quieter operation with a much smoother rotation with the shaft. Applications include agriculture, lawn and garden, HVAC and air handling, automotive, recreational vehicles, food processing, vending, construction, manufacturing, pulp & paper, solar, mining, water treatment, aerospace, quarrying and mining.

Rubber Mounted Pillow Block Bearing with Bushing
Send us a message

View as Table List

21 Items

per page
Set Descending Direction
Part
Number 		Add to
Compare 		Shaft Size (Bore ID) Mount Hole Center to Center Overall Length Bearing Spherical Diameter Bearing Width Quantity Request
Quote
NAH8P 1/2" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH8P Rubber Mounted Pillow Block Bearing with Bushing NAH8P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Rubber Mounted Pillow Block Bearing with Bushing with Cushion, 16 Gauge - 1/2"

with SAE30 Non-Detergent Oil, Center to Center 3", Overall Length 4", Bearing Width 1.25", Spherical Diameter 1.69"
Part #: NAH8P
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH8A 1/2" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH8A Rubber Mounted Pillow Block Bearing with Bushing NAH8A
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1/2"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH12P 3/4" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH12P Rubber Mounted Pillow Block Bearing with Bushing NAH12P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Rubber Mounted Pillow Block Bearing with Bushing with Cushion, 16 Gauge - 3/4"

with SAE30 Non-Detergent Oil, Center to Center 3", Overall Length 4", Bearing Width 1.25", Spherical Diameter 1.69"
Part #: NAH12P
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH12A 3/4" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH12A Rubber Mounted Pillow Block Bearing with Bushing NAH12A
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NA7803 3/4" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NA7803 Rubber Mounted Pillow Block Bearing with Bushing NA7803
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH10P 5/8" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH10P Rubber Mounted Pillow Block Bearing with Bushing NAH10P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Rubber Mounted Pillow Block Bearing with Bushing with Cushion, 16 Gauge - 5/8"

with SAE30 Non-Detergent Oil, Center to Center 3", Overall Length 4", Bearing Width 1.25", Spherical Diameter 1.69"
Part #: NAH10P
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH10A 5/8" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH10A Rubber Mounted Pillow Block Bearing with Bushing NAH10A
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
5/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH14P 7/8" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH14P Rubber Mounted Pillow Block Bearing with Bushing NAH14P

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Rubber Mounted Pillow Block Bearing with Bushing with Cushion, 16 Gauge - 7/8"

with SAE30 Non-Detergent Oil, Center to Center 3", Overall Length 4", Bearing Width 1.25", Spherical Diameter 1.69"
Part #: NAH14P
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH14A 7/8" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH14A Rubber Mounted Pillow Block Bearing with Bushing NAH14A
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH16G 1" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH16G Rubber Mounted Pillow Block Bearing with Bushing NAH16G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Rubber Mounted Pillow Block Bearing with Bushing with Cushion, 16 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 3", Overall Length 4", Bearing Width 1.25", Spherical Diameter 1.69"
Part #: NAH16G
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NAH16A 1" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NAH16A Rubber Mounted Pillow Block Bearing with Bushing NAH16A
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs
NA7250 1" 3 4 1.69 1.25 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NA7250 Rubber Mounted Pillow Block Bearing with Bushing NA7250
PRODUCT SPECIFICATIONS
Triangle Series
NA
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
1.69"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.25"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4"
Mount Width
1.125"
Mount Hole Center to Center
3"
Mount Socket Diameter
1.9"
With Cushion
Yes
View All Product Specs

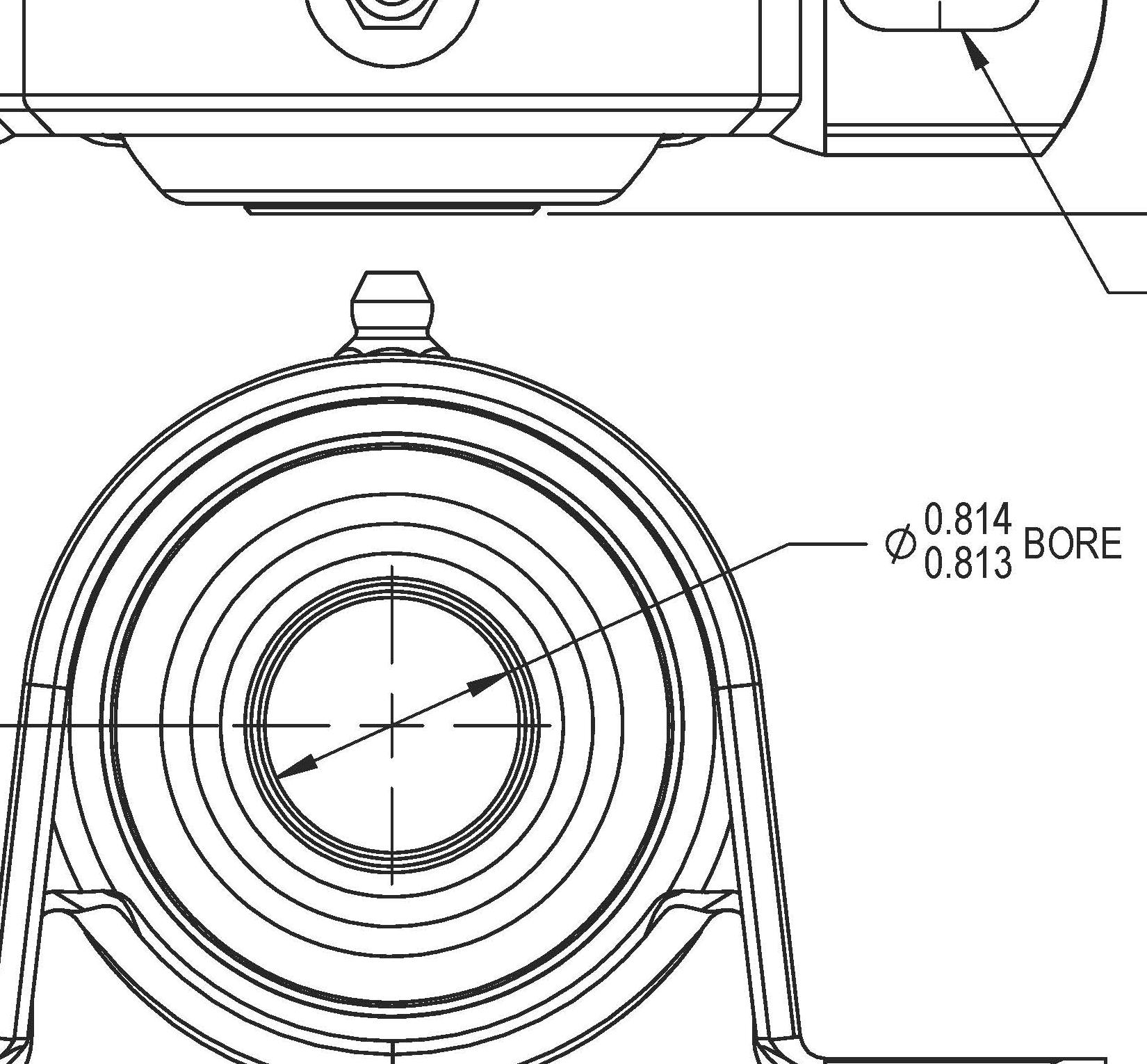

NBE13G 13/16" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE13G Rubber Mounted Pillow Block Bearing with Bushing NBE13G

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Rubber Mounted Pillow Block Bearing with Bushing with Cushion, 16 Gauge - 13/16"

with Grease Fitting (Zerk), Center to Center 3.5", Overall Length 4.562", Bearing Width 1.5", Spherical Diameter 2"
Part #: NBE13G
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs
NBE13A 13/16" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE13A Rubber Mounted Pillow Block Bearing with Bushing NBE13A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs
NBE15A 15/16" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE15A Rubber Mounted Pillow Block Bearing with Bushing NBE15A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs
NBE12A 3/4" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE12A Rubber Mounted Pillow Block Bearing with Bushing NBE12A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs
NBE14A 7/8" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE14A Rubber Mounted Pillow Block Bearing with Bushing NBE14A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs

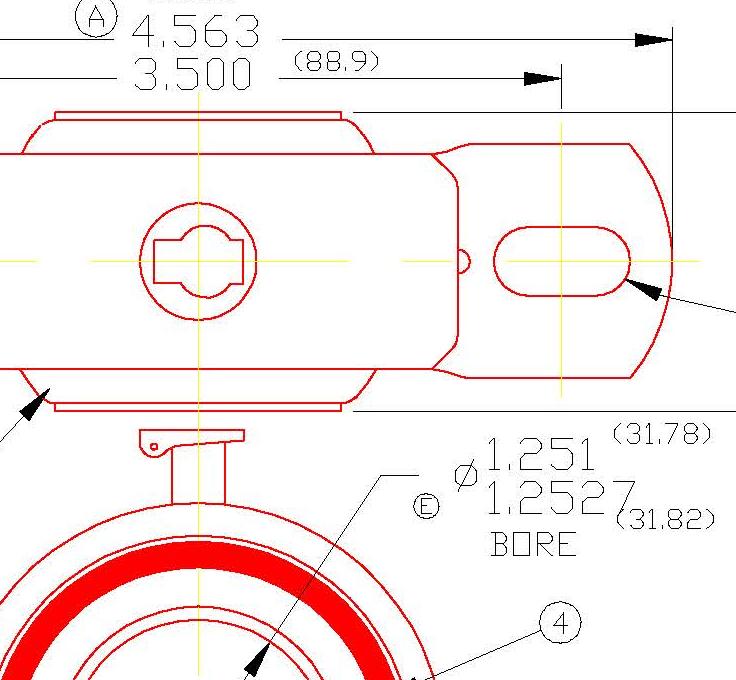

NBE20A 1 1/4" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE20A Rubber Mounted Pillow Block Bearing with Bushing NBE20A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs

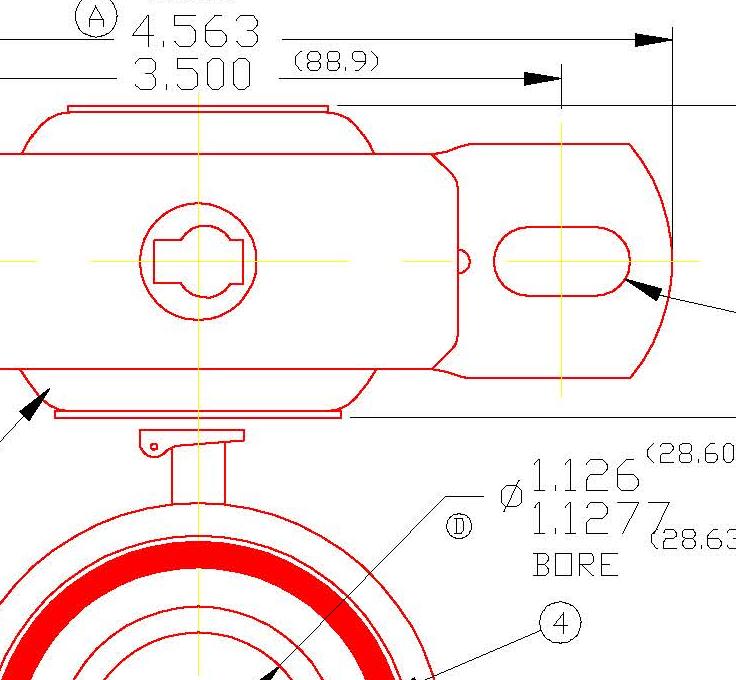

NBE18A 1 1/8" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE18A Rubber Mounted Pillow Block Bearing with Bushing NBE18A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 1/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs

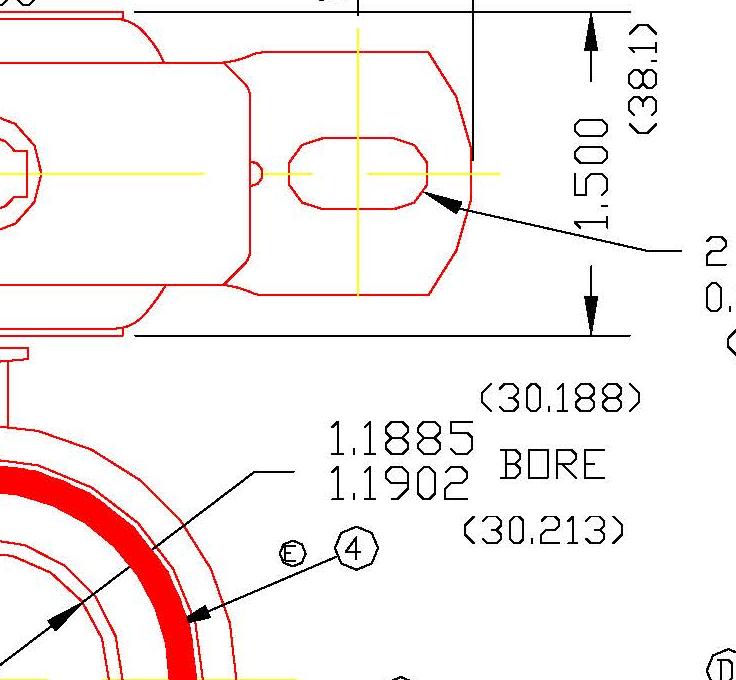

NBE19A 1 3/16" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE19A Rubber Mounted Pillow Block Bearing with Bushing NBE19A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs

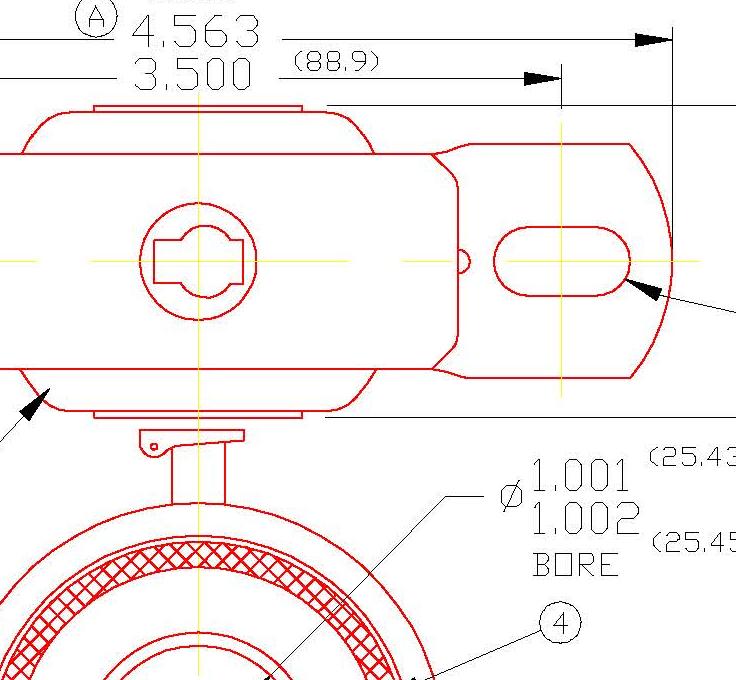

NBE16A 1" 3.5 4.562 2 1.5 Qty:
Rubber Mounted Pillow Block Bearing with Bushing NBE16A Rubber Mounted Pillow Block Bearing with Bushing NBE16A
PRODUCT SPECIFICATIONS
Triangle Series
NB
Type
Rubber Mounted Pillow Block Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
2
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
4.562"
Mount Width
1.125"
Mount Hole Center to Center
3.5"
Mount Socket Diameter
2.25"
With Cushion
Yes
View All Product Specs
FILTER RESULTS
FILTER

Bearing Spherical
Diameter

Drawing Showing a Shaft Size Measurement
Apply

Bearing Width

Drawing Showing a Bearing Measurement
Apply

Lubrication
Apparatus

  How to Choose Lubrication Apparatus

LUBRICATION APPARATUS

TYPE A – OIL CUP

Oil Lubricated | Ex: H12A



TYPE G – GREASE FITTING (ZERK)

For grease lubrication | Ex: H12G

*Triangle does not lubricate the bearing with grease in the manufacturing process. Customer must apply.



TYPE F (LUBE FITTING)

Closed smooth ball, no openings or protrusions Ex: H12F



TYPE K – ANGLED OIL CUP

Oil Lubricated | Ex: H12K



TYPE J – ANGLED GREASE FITTING (ZERK)

For grease lubrication | Ex: H12J

*Triangle does not lubricate the bearing with grease in the manufacturing process. Customer must apply.



Mount Hole
Center to Center

  How to Measure Mount Hole Center to Center

MOUNT HOLE CENTER TO CENTER

 Mount hole center to center is the distance between each mounting hole. Please see images for reference of each part.

FLANGE BEARING





PILLOW BLOCK BEARING



HANGER BEARING





PEDESTAL BEARING



OFFSET FLANGE BEARING





LINKAGE ASSEMBLY



LAZY SUSAN BEARING


Apply

Overall Length

  How to Measure Overall Length

OVERALL LENGTH

The Overall Length measurement is the distance from each end of a product. Please see images below for more clarification on other categories (i.e. Linkages & Rod Ends, Lazy Susan Bearings and Motor Mounts)

LINKAGES & ROD ENDS



MOTOR MOUNT BANDS



LAZY SUSAN BEARING
Apply

Mount Socket
Diameter

Apply

Type of
Lubricant

  How to Choose Type of Lubricant

TYPE OF LUBRICANT



GREASE LUBRICATION

Bearings with grease fittings are NOT factory lubricated. Grease should be applied with a pressure gun at the time of installation, filling the ball unit and bearing until grease appears at the shaft surface.

Grease for a lubrication is recommended for applications with lower speeds and loads. Because the grease restricts contaminants from entering it is preferred for dusty and dirty applications.



PLASTIC E LUBE

Gulf Plastic Petroleum “E” feeds slowly through the bushing by capillary action, replacing dissipated lubricant. Factory-lubricated ball units may be closed balls or equipped with removable plugs for relubrication.



SAE 30 NON-DETERGENT OIL

FOR BEARING BALL WITH BUSHING

Triangle Steel Bearing Ball Units have large oil retaining felts for substantial lubricant capacity. Once the bearing is in use and the ball and felt saturated with oil, long bearing life may be expected under proper operating conditions. The standard oil supplied is a good grade of industrial mineral oil, NON-DETERGENT, SAE 30 viscosity. Bearing use at elevated or very low temperatures may require oil of different viscosity. Triangle recommends relubrication of bearings at the time of installation even though a full supply of oil is provided at the factory. Conditions encountered during shipping and storage may cause some oil loss.



FOR SINTERED BEARINGS

Triangle’s sintered bearings are oil impregnated with SAE30-Non-Detergent oil. These bearings are porous which allows for the bearing to be constantly re-lubricated while being used.



BEARINGS WITH SPECIAL LUBRICANT

Triangle is not limited to the lubrication methods described above. If you require a special lubricant, please contact us. We will be happy to discuss that requirement with you.
PRODUCTS

 (

)

Select and compare up to 4 products.
Select and compare up to 4 products.
Copyright © 2026 Triangle Manufacturing Company. All rights reserved.
